What is HandyDob?
What is HandyDob?
HandyDob is a combination of “Handy” and “Dobsonian”—a lightweight portable Dobsonian telescope designed for maximum portability and ease of assembly. Unlike traditional large and heavy Dobsonian telescopes, HandyDob uses 3D printing technology to create a light yet durable frame that can be quickly assembled and disassembled by anyone. The HandyDob6 uses a 6-inch (150mm) primary mirror, capable of observing the Moon, planets, star clusters, and galaxies. It fits in a 17-inch travel bag, making it perfect for stargazing anytime, anywhere.

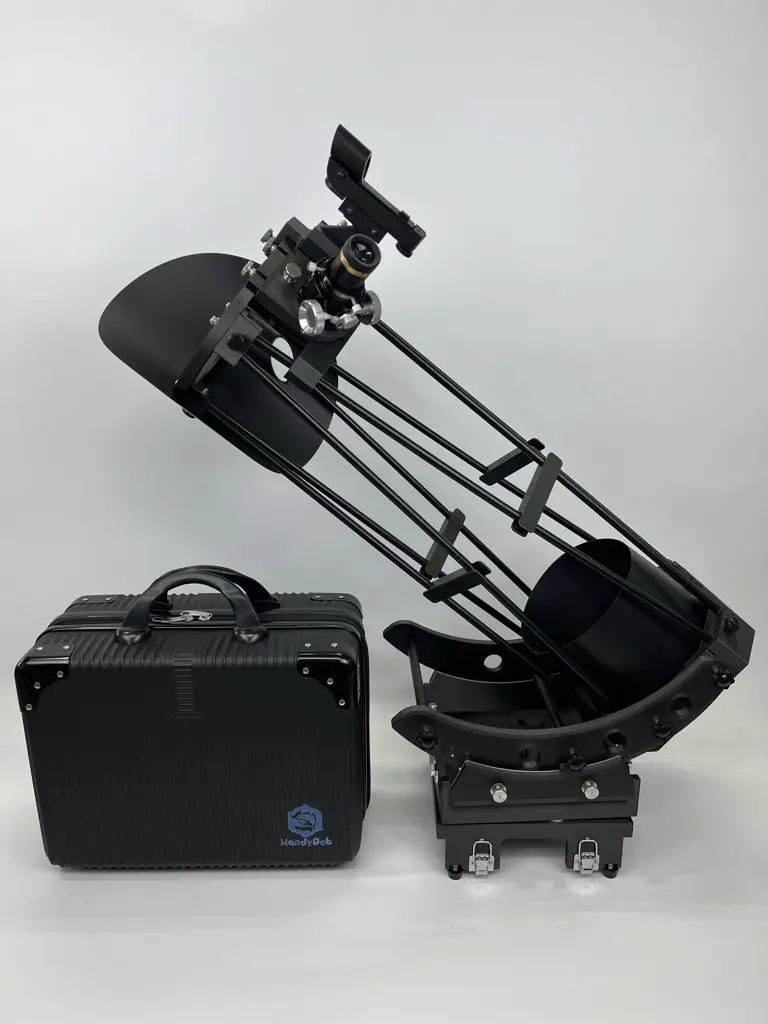

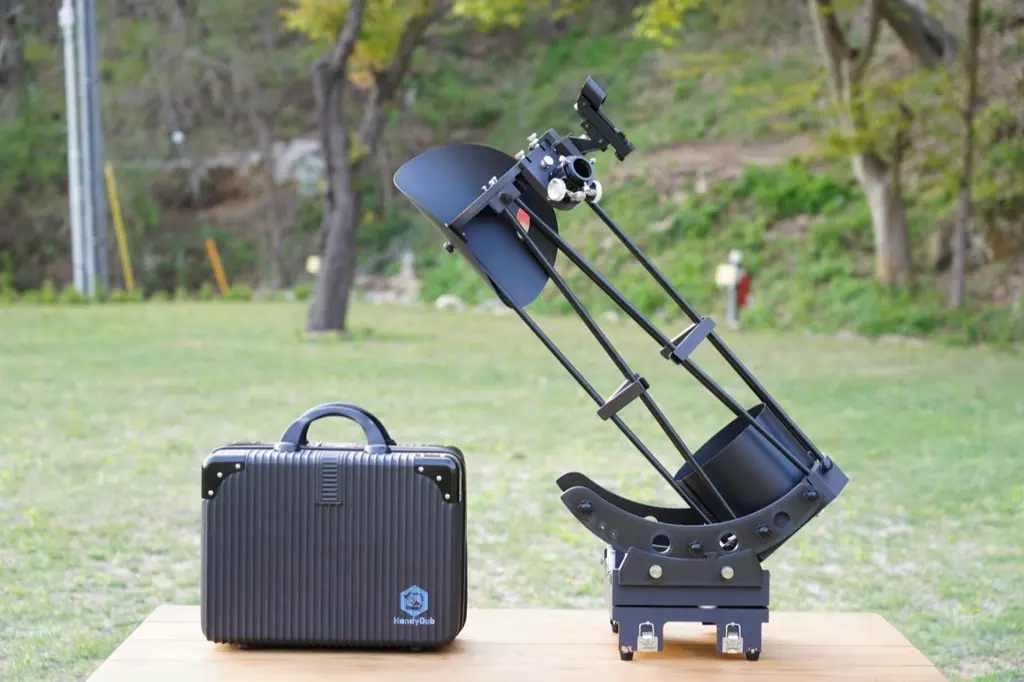

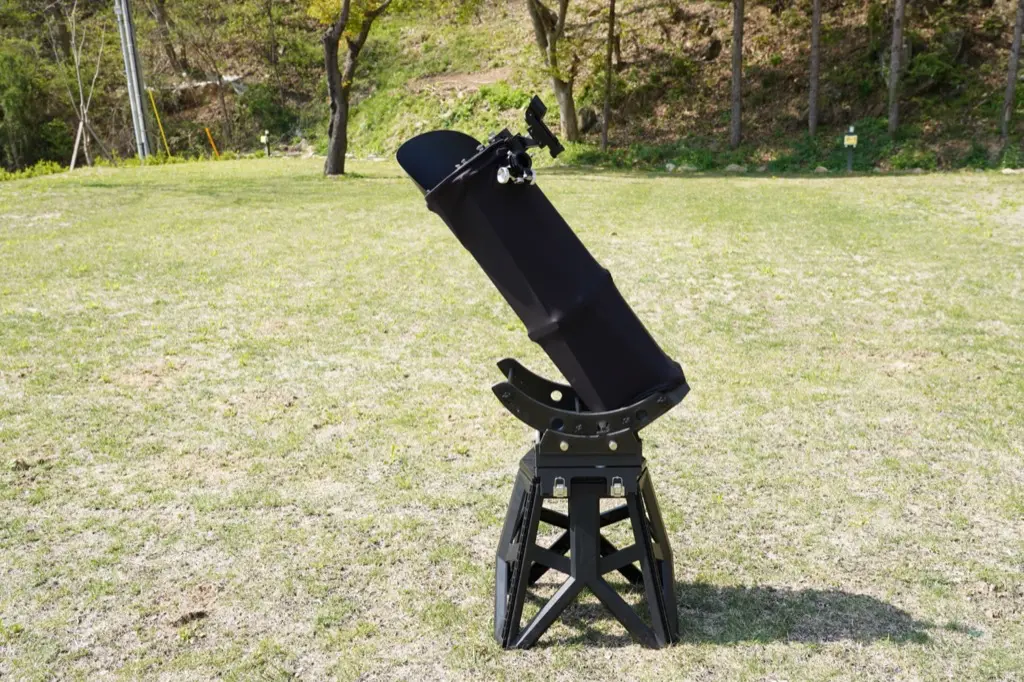

HandyDob6 – 6-inch Ultra Light Travel Dobsonian
Specifications
| Item | Details |
|---|---|
| Type | Travel Dobsonian Telescope |
| Aperture | 150mm (parabolic mirror, protective coating) |
| Mirror Precision | At least PV 1/4 λ (manufacturer specification) |
| Focal Length | 750mm |
| F-ratio (F) | 5 |
| Secondary Mirror | 38mm (with heater, protective coating) |
| Focuser | 1.25" CNC machined, precision bearing slide, 35mm travel |
| Finder | Red dot finder |
| Body Size | 250mm x 280mm x 110mm |
| Body Weight | 4.2kg |
| Bag Size (17-inch) | 400mm x 300mm x 180mm (excluding handle) |
| Total Weight with Bag | 7.8kg (with all accessories) |
| Focuser Height After Assembly | 745mm (from floor pointing at zenith) |
Features
- 3D printed portable Dobsonian telescope
- Full body: High-quality PETG-CF (carbon fiber infused)
- Primary/Secondary mirror covers and clips made from PETG

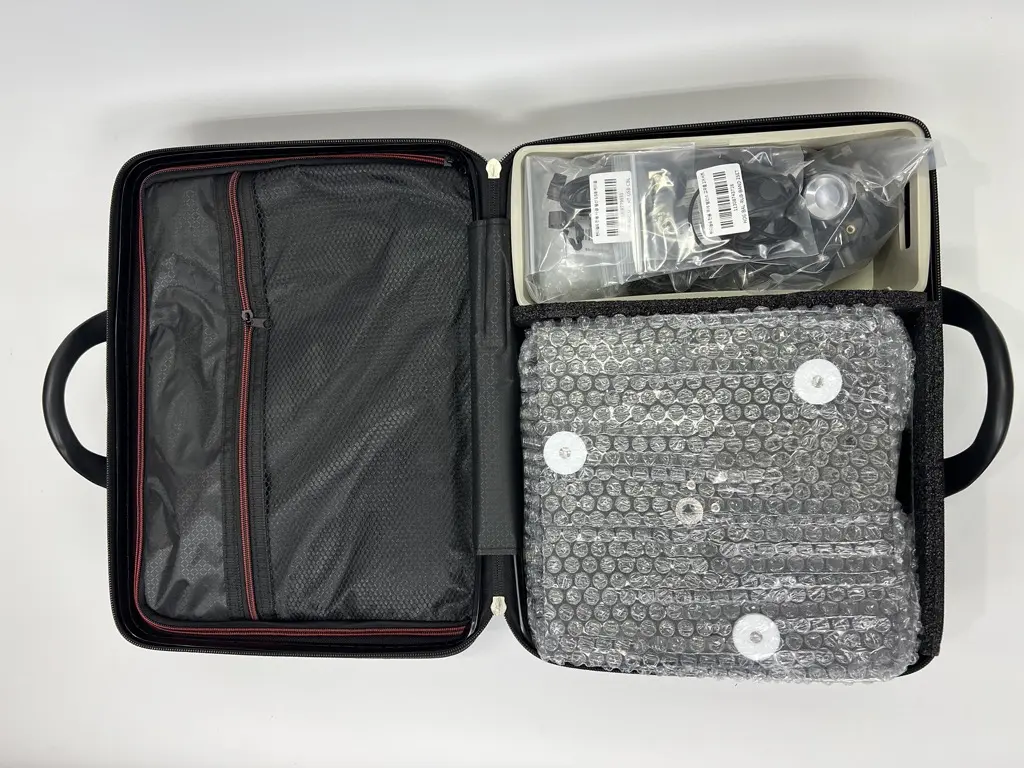

- All components fit into the travel bag including truss poles
- Carry-on size for air travel
- Passes airline checks with just a mini hex wrench set
- Fast and simple assembly/disassembly
- Minimal bolts (9 total)
- Primary mirror:
- Accepts up to 153mm diameter
- Position adjustable with 3 knobs
- Magnetic detachable mirror cover with handle
- Secondary mirror:
- Built-in heater and magnetic USB connection
- Comes with protective cover and dedicated case
- Magnetic holder and position guide
- Focuser:
- CNC aluminum alloy with precision bearing slide
- 35mm travel and sag-resistant design
- Truss poles:
- Maintain stable center of gravity
- Supports heavy eyepieces and smartphones
- Counterweight and balance:
- Magnetic 220g weight and elastic bands
- Altitude lock pin (5° fixed)
- 3/8" camera tripod compatible
- Includes detachable dot finder and light hood
- Rubber feet with leveling capability
- Visual assembly guide arrows
- Cooling fan: 40mm dual ball bearing, magnetic, USB 5V
- Built-in bubble level

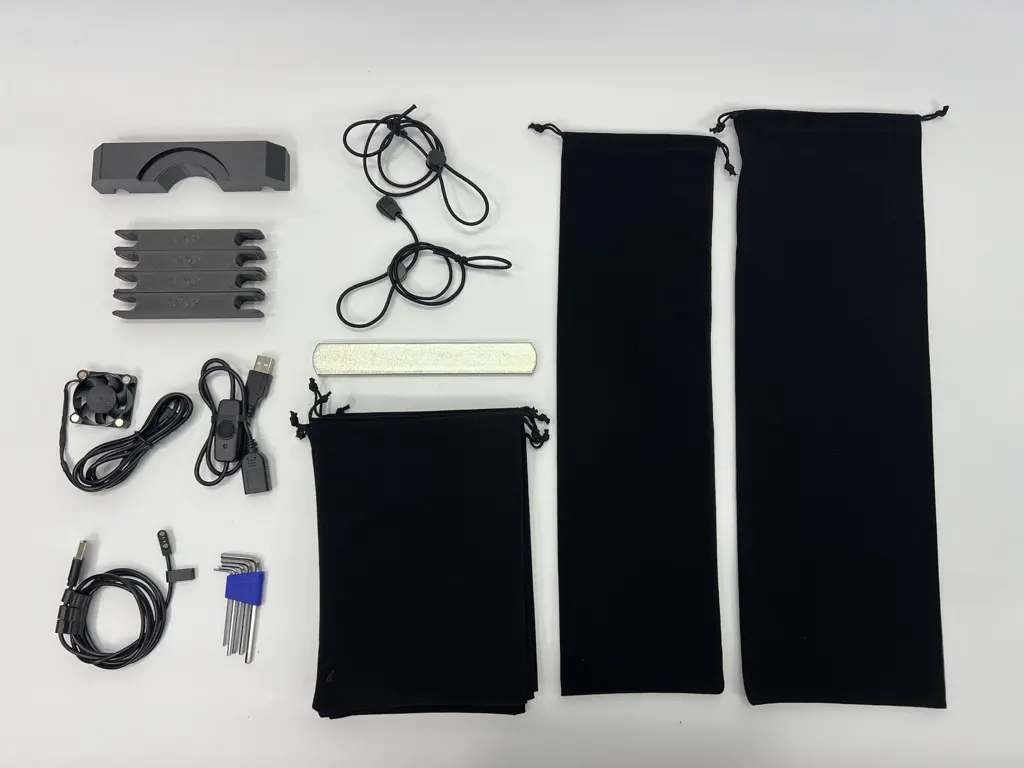

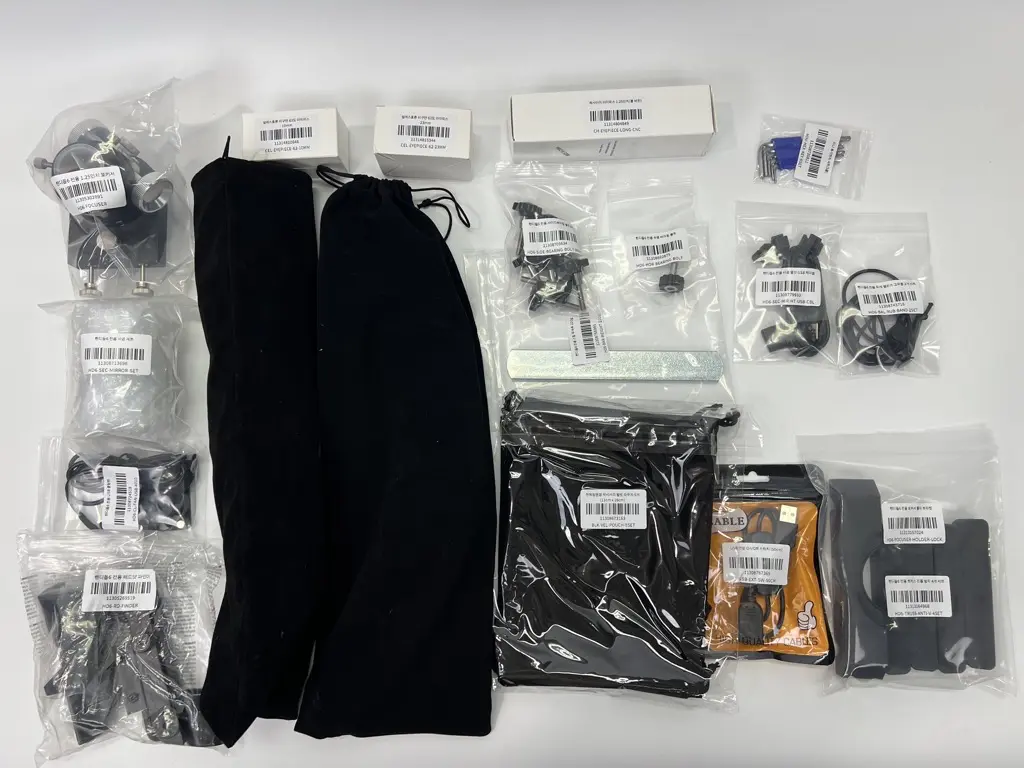

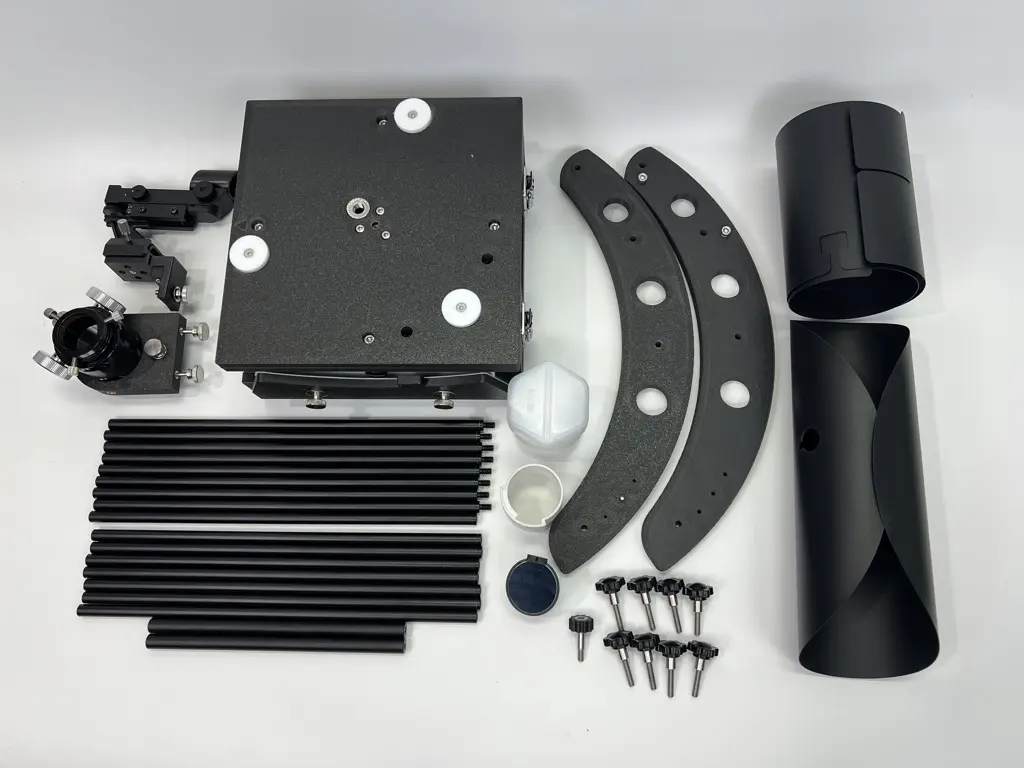

Full Package Contents

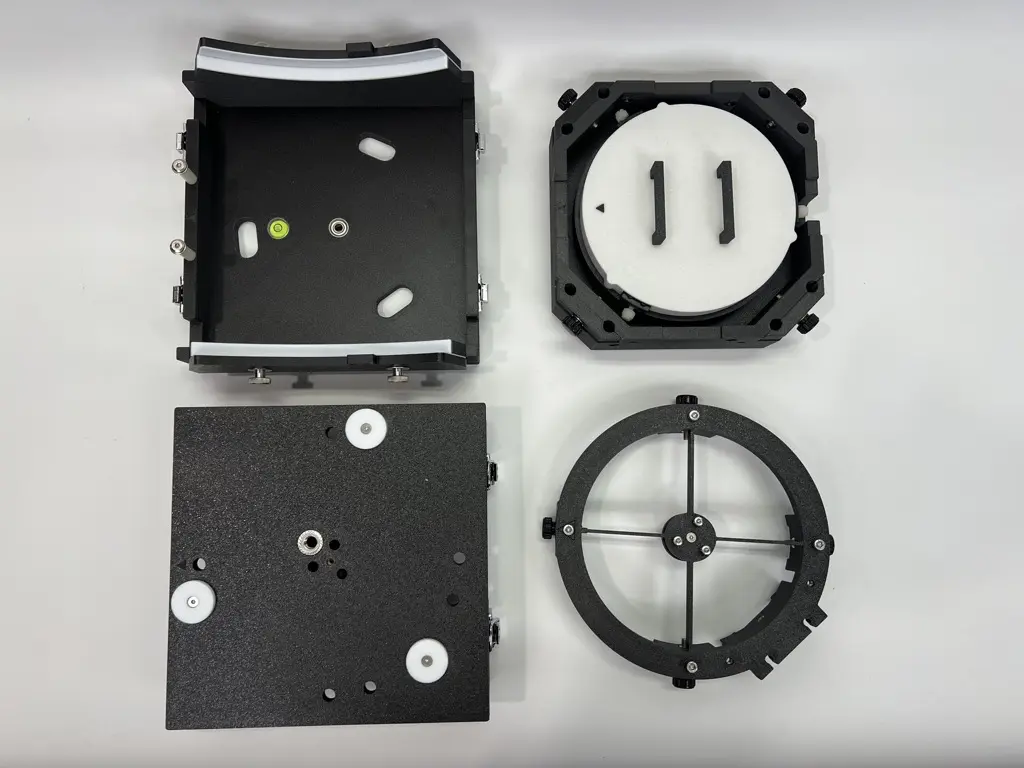

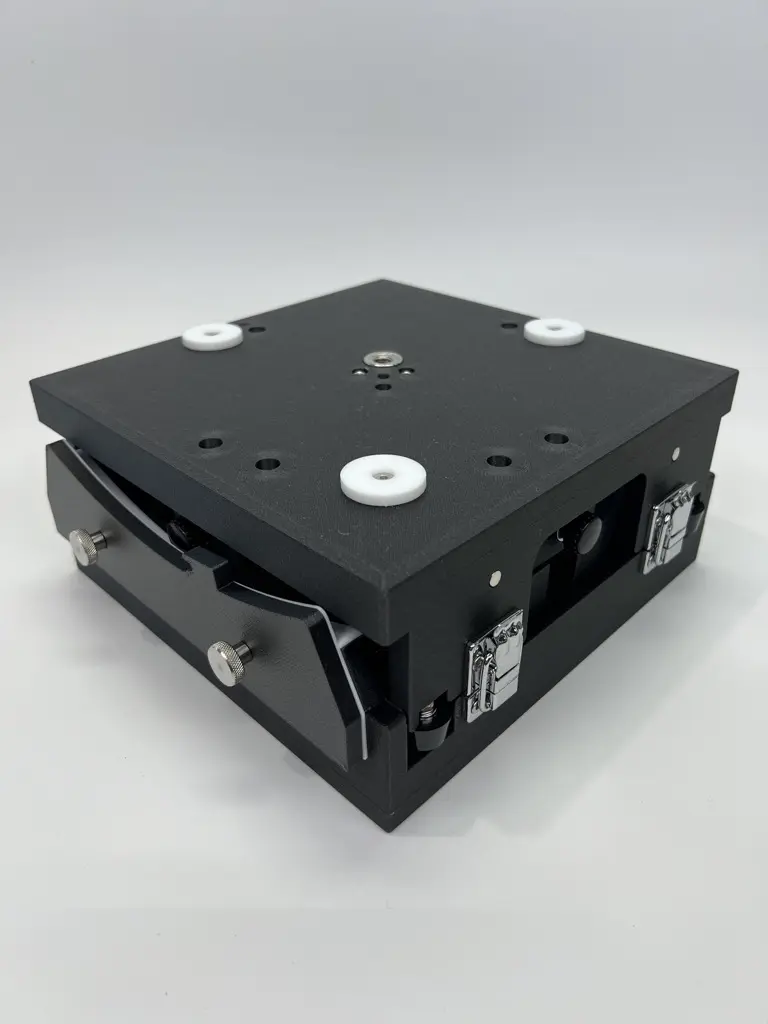

- Telescope body (top/bottom case, mirror box, mirror cell, upper cage)
- Detachable 1.25" focuser
- Truss poles (16 total, 8 used during setup)
- 2 side bearings & 2 crossbars
- Secondary mirror with holder, cover, and case
- Magnetic primary mirror cover with handle
- USB magnetic heater cable for secondary
- On/Off USB switch for heater
- Focuser stabilizer bracket
- 4 vibration dampening brackets for truss poles
- Magnetic cooling fan
- 7 velvet pouches (1 for bearings, 1 for poles, 5 general)
- Mini hex wrench set (1.5–4mm)
- 220g magnetic counterweight
- 2 balance bands

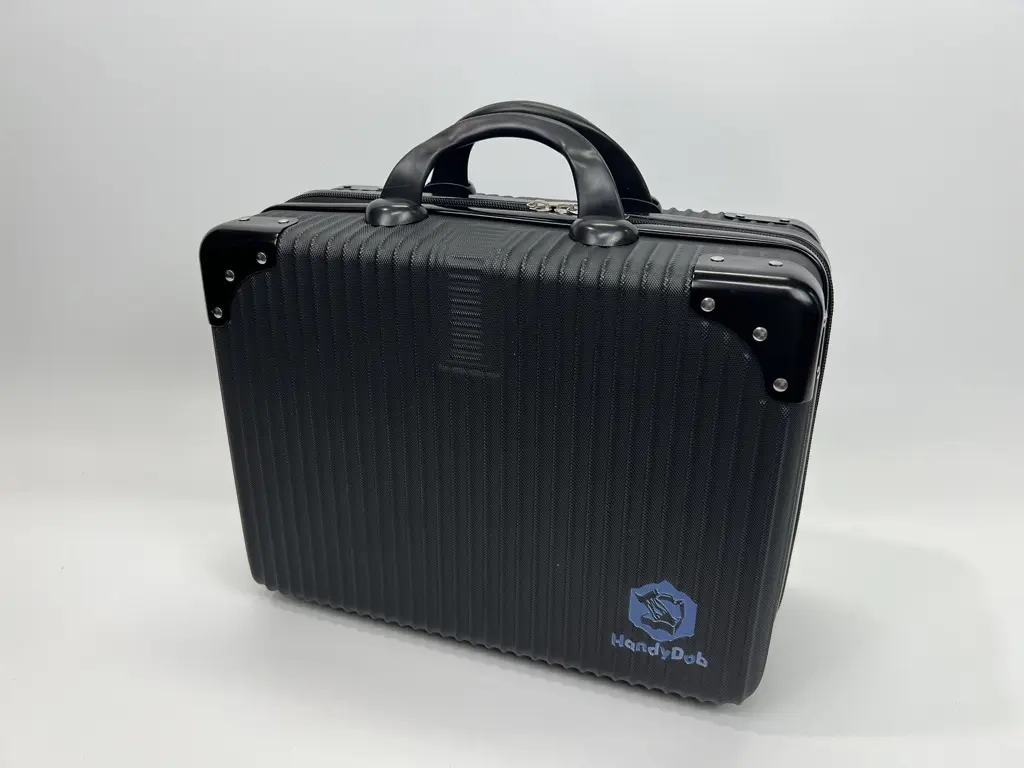

- 17-inch travel bag
Origin
- Frame production and assembly: South Korea
- Main components: China
- Made in Korea (Body 3D Printed and Assembled in Korea, Parts made in China)
Support & Warranty
- 1-year warranty (user damage not covered)
- HandyDob6 travel bag is excluded from warranty
- Technical inquiries: [email protected]
- A/S Requests:
